UV Flame Monitor System

Industrial power generation gas turbine installations demand the superior protection provided by the Ontic Ultraviolet (UV) Flame Monitor System. The UV Flame Monitor System detects ultraviolet radiation emitted by a hydrocarbon flame and produces an output signal to indicate a flame or no-flame condition.

Flame

PROVEN PERFORMANCE

This system has delivered proven performance on General Electric (and GE licensee) gas turbines for more than 40 years.

Land-based and off-shore applications include power generation, pumping stations and shipboard power generation, among other industrial uses. A variety of sensor types, amplifier types, and sensor cable lengths are available.

Design

High sensitivity with fast response time (typical 0.1 second)

Operating distances up to 1,000 feet (305 meters) from Flame Sensor to Amplifier

Amplifiers support multiple voltage requirements: 28 Vdc, 20-35 Vdc, and 115 Vac

Geiger Müller-type sensor phototube detects ultraviolet band at 1800-2600 angstroms

10,000 hours mean time between failures (MTBF)

Two-year shelf life

Features

Flame Sensors available with Factory Mutual (FM) approval for explosive atmospheres

Flame Sensors available with CE mark, ATEX European directive, and IECEx global certification

Explosive Atmosphere 2014/34/EU

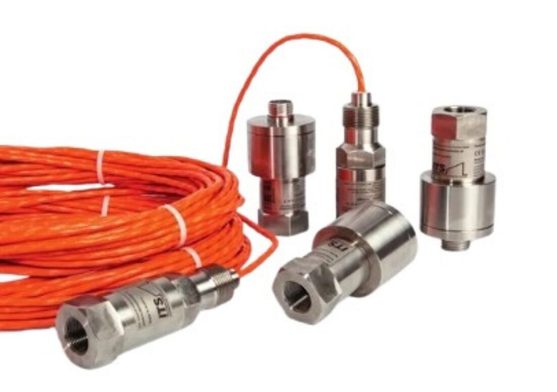

Flame Sensor Products

LG1093AA24

LG1093AA26

LG1093AA36

LG1093AA44

LG1093AA45

LG1093AA46

LG1093AC01

LG1093AC05

Amplifier Products

EG1033AA01

EG1033AC01

EG1033AD01

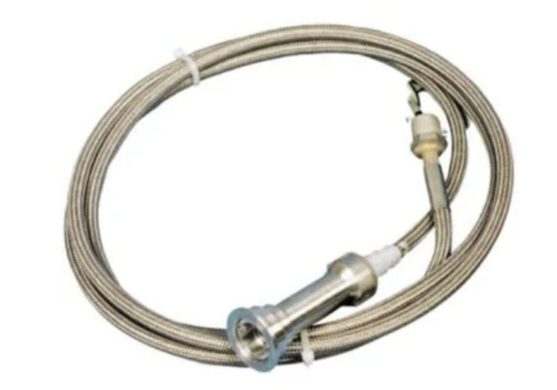

Flame Sensor Characteristics

LG1093AALG1093AC
Mounting Interface3/4 inch internal NPT1.73 inch O.D. by 0.14 inch wide flange
Control Panel
Connection
Teflon shielded cable with one
inch external conduit thread
Two conductor armored cable
Operating
Temperature
-40°F to +350°F-40°F to +350°F
Window Pressure
Rating
150 psig at 400°F6.3 psig
Cable LengthsAA24/AA44: 186 ± 6 inches
AA45: 506 ± 6 inches
AA26/AA36/AA46: 726 ± 6 inches
AC01: 110 ± 2 inches
AC05: 290 ± 2 inches

Special Certifications

Explosion Proof for Class I, Division 1, Groups B, C, D

Nonincendive for Class I, Division 2, Groups A, B, C, D, T3
Non-sparking for Ex nA IIC T3 Gc
IECEx for Ex db IIA/IIC T3 Gb
ATEX Directive 2014/34/EU for II 2 G Ex db IIA/IIC T3 Gb
EMC Directive 2014/30/EU

Nonincendive for Class I, Division 2, Groups A, B, C, D, T3

Non-sparking for Class I, Zone 2, AEx/Ex nA IIC T3 Gc
IECEx for Ex nA IIC T3 Gc
ATEX Directive 2014/34/EU for II 3 G Ex nA IIC T3 Gc
EMC Directive 2014/30/EU

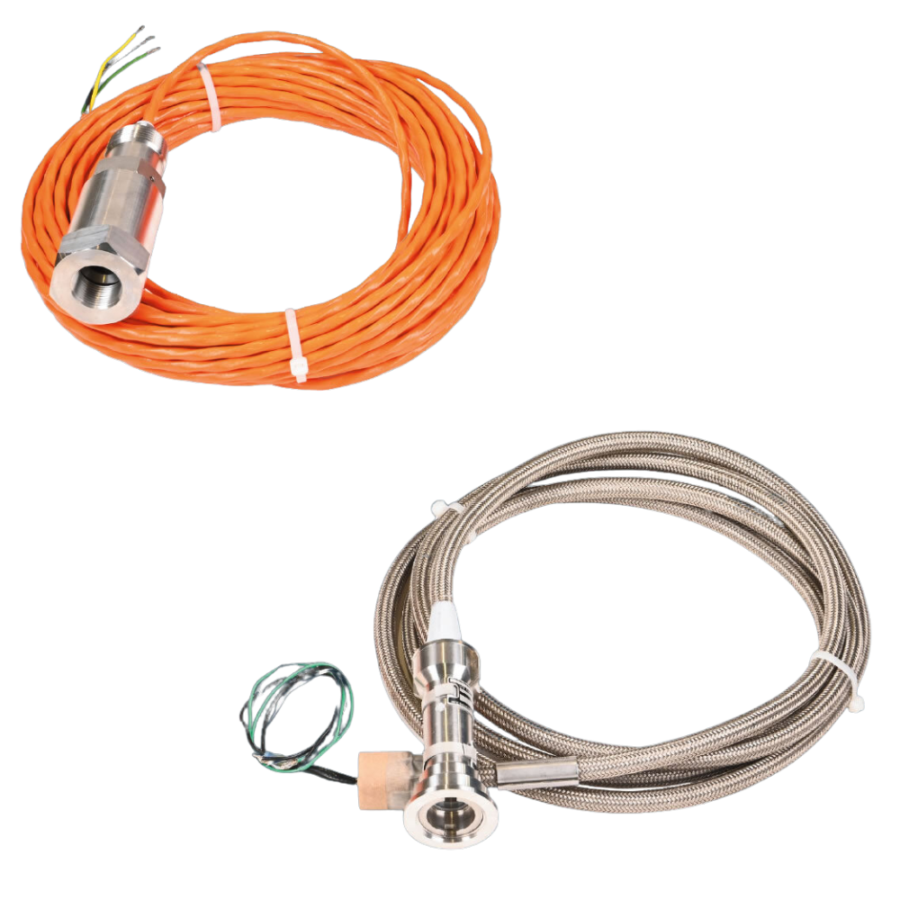

Flame sensor cables transparent

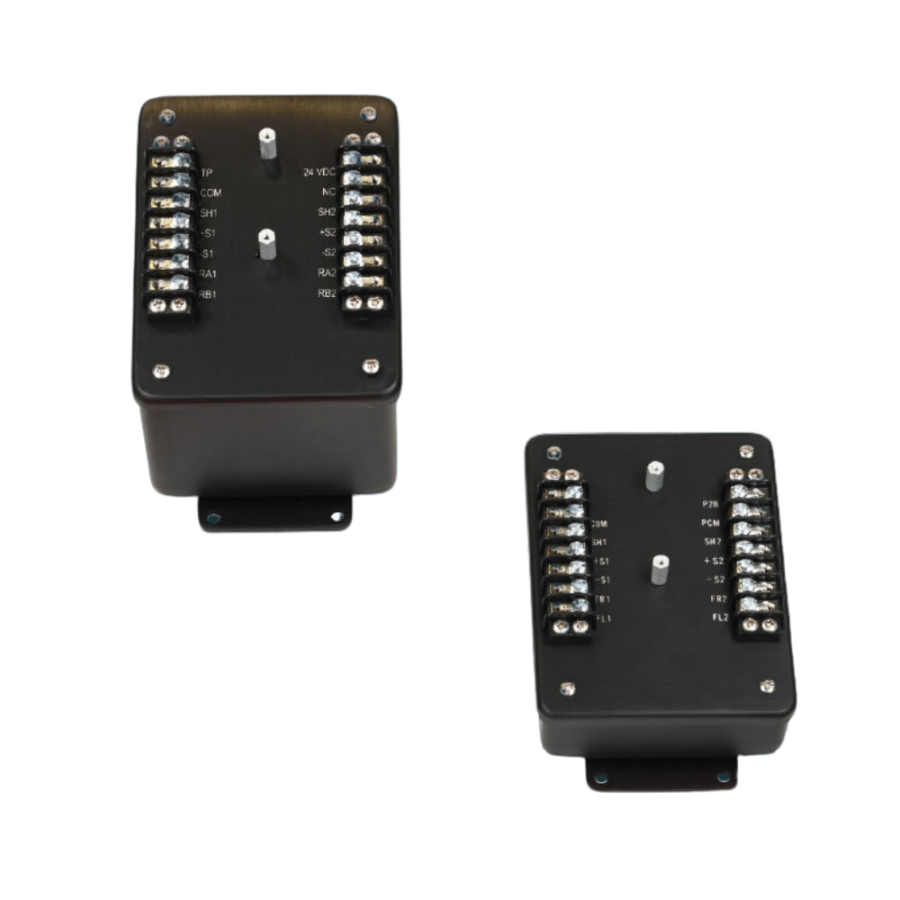

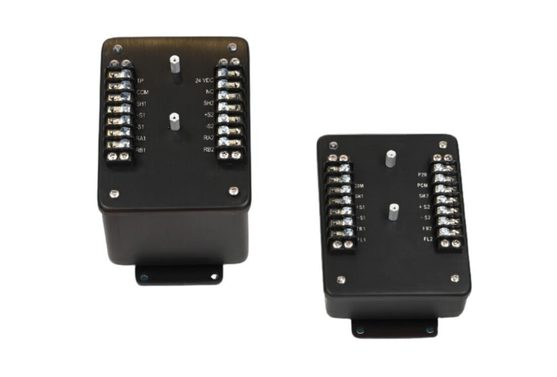

Amplifier Characteristics

EG1033AA

EG1033AC/AD

Physical Dimensions6.62 x 4.25 x 2.32 inches6.62 x 4.25 x 4.44 inches
Mounting HolesFour .20 in diameter holes,
6.00 x 2.00 inches apart
Four .20 in diameter holes,
6.00 x 2.00 inches apart
Power Input28 +/- 0.14 Vdc, 0.5 amps max20 to 35 Vdc, 10 watts max
Amplifier OutputTransistor open collectorRelay Contacts
Flame Detect TimeTypical 0.1 second, maximum 1.0 secondTypical 0.1 second, maximum 1.0 second
Flame Loss Detect TimeMaximum 0.2 secondMaximum 0.2 second
Special CertificationsElectromagnetic Compatibility (EMC) Directive 2014/30/EU
Low Voltage Directive (LVD) 2014/35/EU
Electromagnetic Compatibility (EMC) Directive 2014/30/EU
Low Voltage Directive (LVD) 2014/35/EU
Amplifier transparent
